We are well-known manufacturer and supplier of High Intensity and High Gradient Magnetic Drum Separator. Our Magnetic Drum Separator is best in quality strong in durability and outstanding in performance because it made using superior quality raw materials. Permanent Drum type Magnetic Separator is highly applicable non electric separator for separating tramp iron from non magnetic material processed in bulk quantity for the purity of end products, recovery of metal. It has commercial value and protection of processing plant and machinery. These are widely used in all processing industry for separation of iron contamination from mineral, chemicals, food, flour plastics, grains, sand, cement, fertilizers, abrasives, glass, slag, ores, rock, refractor and many other products size range.

The Permanent Drum Separators are available in standard drum diameters of300mm, 400 mm. Drum width range from 300mm to 1200mm. Other sizes can be manufactured according to the specific requirements of customers. The larger the diameter and width of the drum the greater is the volume of material which can be handled. We have well-experienced professionals who possess expertise in this field. We offer these products at very cost-effective prices to give maximum satisfaction to customers.

• Drum consists of high energy Rare Earth Neodymium Permanent Magnets.
• Products are strong & rugged construction
• Automatic Separator of iron impurities
• Completely enclosed design to avoid dusting and pollution

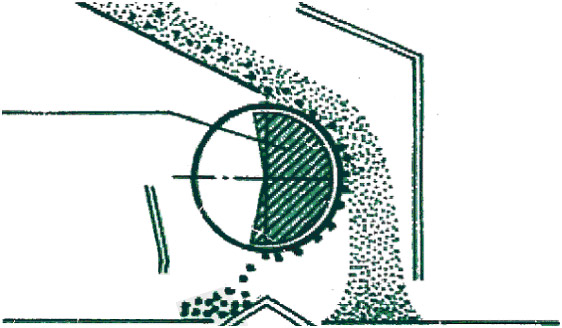

Star Trace Permanent Magnetic Drums are consisted of stationary Permanent Magnetic assembly, which possess uniform and everlasting magnetic field across the entire width of the drum. It is highly effective over approximately half the drum circumference. Our drum shells are manufactured using excellent quality non magnetic stainless steel, which revolves around the magnetic field. As the material feed evenly from the chute falls over the drum, Powerful magnetic, field attracts and holds ferrous particles to the revolving shell. As the revolving shell carriers the iron particles through the stationery magnetic field, the non magnetic material falls freely from the shell while ferrous particles are firmly held till carried beyond divider and out of magnetic field.

The durability of the Permanent Magnetic Drum is assured to be greater than corresponding Electromagnetic Drum. The total enclosed type drum comes complete with a chute type feeder, hopper, adjustable feed regulation gate, magnetic drum and geared motor drive in a ready for use condition. Inlet & outlet openings are flanged for ease of connection to customers duck work. Double or triple totally enclosed machines can also be supplied if required by clients. Star Trace's Wet Permanent Magnetic Separators are offered in various sizes such as dia 1200 mm (48`) and 916 mm (36`) ion lengths of up to 3000 mm (10`).

There are three basic separator designs are available for copping, roughing and finishing / cleaning applications. Each type can be supplied in single drum or multiple drum stages of taconite or magnetic and also for recovery for magnetic medium in dense media plants. The stationery magnet yoke is an assembly of Rare Earth Neodymium Permanent magnets. The rotating drum is available with optional rubber or stainless steel covers. The magnetic flux pattern will match the tank configuration for optimum performance.

Technical data and specification subject to change.
# Special Magnetic Drum Separator can be made on request of customers they have to simply send us their technical data and application, required for our engineers.
