We are one of the pioneer manufacturer and supplier of Over Band Magnetic Separators. These products are made from the most established quality raw materials for reliability, durability and outstanding performance of products. We have highly sophisticated manufacturing plants and qualified engineers who strive with dedication for customized products. Our company, Star Trace manufactures and supplies top-class products to ensure complete satisfaction of the customers.

In many industries, Star Trace Overband Magnetic Separation and Suspension Magnets have become primary requisite for decades. These are used to remove magnetic parts from non-magnetic materials for projecting crushers, mills, processing plants etc. against too much wear and damage. Over band Magnetic Separations are used for non­magnetic bulk goods with iron contamination, for instance cleaning of foundry sand, coal and the like. These products are also applicable for recovering magnetic material from ore, steel mill slag etc.

Usually, Overband Magnetic Separations and Suspension Magnets are installed above conveyor belts, vibratory feeders or chutes. They pick up ferrous metal parts from the bulk goods. In most cases, the magnets can also be installed in an existing installation without much expense. While using Overband Magnetic Separations and Suspension Magnets, many factors must be considered for the various applications, and it is impossible to list them all in a brochure. Each application, material and kind of conveying involves different problems.

Owing to the shape (demagnetization factor), long, bar-shaped and large iron parts can be better separated than short, cube shaped bulbous and small iron parts. The efficiency of the Overband Magnetic Separator or Suspension Magnet depends on the pole size, pole distance, field intensity in the conveyor burden, lines of the material to be separated. Large burden depths, large lump sizes, sticky or humid material render the separation more difficult.

We, at Star Trace have been using cutting edge technology to design the performance of their Suspended Magnets over any belt conveyor, vibratory feeder or inclined chutes. It ideally suited for removing tramp iron in quantities where continually discharging magnetic separators are necessary. Iron is extracted against gravity from the flow of material and held firmly to the magnet face until the magnet is de-energized. The best position for installation is it an angel over the conveyor head pulley or at the discharge point of a feeder, where the material fans out and is loose.

In this position the magnet will remove more iron belt speeds looking at it cost wise. This installation provides the best tramp iron removal for the money invested. Other installations have been made with the magnet suspended parallel to and above the conveyer. In such applications it is necessary to use a stronger magnet because tramp iron must be pulled through a fairly stable bed of material. Cleaning is simple-the operator just swings the magnet away from the conveyor, turns off the current and the tramp iron drops free.

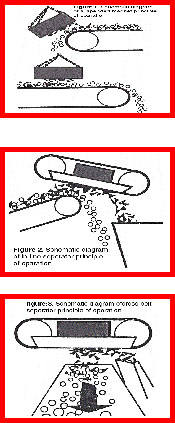

The In Line or cross belt magnetic separators provide at continuous and automatic discharge of collected tramp iron. A cleared belt revolves around stationery rectangular electro magnet suspended over the belt. Any iron coming on the conveyor is attracted by the magnet and discharged automatically by the cleared. Rubber canvas belt has its own independent drive. This is especially desirable where the magnet removes large quantities of tramp iron and hence never requires cleaning or stopping of the main conveyor.

The in-line suspended separator automatically discharge tramp iron in the same direction as the conveyor travels installed at an angle over the material discharge, and has added advantages of removing long pieces of iron such as rods.

Star Trace Suspension Magnets consists of a magnet body and the exciter coil. Cross sections, shape and size of the magnet body are specially designed for magnetic coil and power input. Thus despite compact construction, low weight and low power input, high efficiency is reached.

The magnet body is a welded steel construction of high permeability. The standard exciter coil consists of an aluminum conductor and it is manufactured by using insulating materials of class 'H' and mounted into the magnet body. If specially requested we can also supply coli wound with copper conductor, the coil is covered by a non magnets plate.

Suspension lugs and one set of turn buckles and suspension rod with bullring are normally supplied. Electric Connection is by a terminal box. The entrance for cable fixing is fitted with a suitable cable gland.

We are highly established company offers a wide range of Oil Cooled Suspends and Overband magnetic separations. These magnets are generally shorter in height and lighter in weight as compared to the equivalent Air-cooled magnets. As a result, they are more economically priced.

In addition to the construction featured of the Air Cooled Magnets, these magnets are also provided with a pressure relief value, filling hole, drain plug and an oil level gurge. Furthermore, if increased magnet power is desired, a heat exchanger can be mounted on the magnet to accelerate the cooling of the oil. A 10-15% increase in magnet power is possible with this feature.

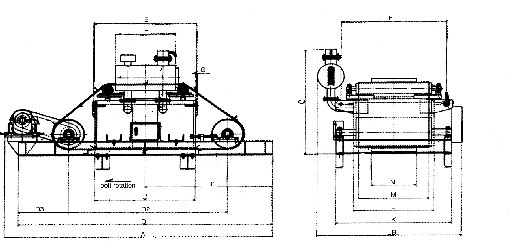

Star Trace Overband Magnetic Separators consist of an Air Cooled or Oil Cooled Suspension Magnet, supporting structure for the discharge belt with drive drum, tail drum, and 2 additional idlers where necessary. The drums, idlers are mounted on suitable self aligning bearings. A suitable geared-motor or motor coupled to gear box is used to drive the discharge belt. The discharge belt is a rubber/canvas or rubber/nylon belt with several piles and cleats. For re­tightening the discharge belt, the fixed axle of the tail drum is fitted with a tensioning device. We offer a wide range of standard Electro Suspension Magnets and Overband Magnetic Separations ideal for belt width upto 2500 mm and operating heights upto 1100mm.

Our company offers Permanent Magnetic Overband Separators and Suspension Magnets, which are powered by ceramic focused -flux, Strontium Ferrite Magnets for superior coercive force. The Magnetism in this equipment is produced by an internal assembly of the above magnetic material. This assembly is enclosed in a non-magnetic housing. Our design concentrates attractive power on the surface where it is needed most. The magnetic strength of the Permanent Magnet will match that of the corresponding size of the electromagnet used for the same application.

• For extra protection from tramp iron
• For increased product cleaning
• For heavy duty separation applications

System 1 consists of an Overband/Suspended Magnet Separator for removing the initial iron, which is combined with a magnetic head pulley for removing even fine iron that may be trapped below.

Consists of an overband/suspended magnet in combination with high sensitivity i mining operations where some of the tramp is non-magnetic but equally damaging.

It consists of two metal detectors one preceding the magnet and the other succeeding the magnet. The magnet will operate at low voltage just sufficient to hold the tramp iron. On receiving signal from metal detector it will go into boost power mode for a few seconds. Should the tramp iron be non-magnetic the proceeding metal detector that will trip the main conveyor motor and sound an alarm.

At the point of installation of any magnet the conveyor idlers or head pulley should be of non-magnetic make, to avoid magnetic induction of the moving iron.

Technical data and specification subject to change.
# Special Over Band Electro Magnetic Separators can be made on request, just send your technical data and application, required for our engineers.
