We manufacture and supply excellent quality Sugar Drum Magnetic Separator, which Separators provide ferrous metal removal from dry, bulk products in free-flowing processing systems. These products are made from the finer quality raw material for producing the finest quality products and offer them at most admirable prices. These products are reliable, durable, offering maximum performance of customers. Due to the nature of their design, Drum Separators are continuously self-cleaning units. These separators can be provided as a complete assembly with the housing and the drive package included, or as the magnetic drum only.

• Improve product purity
• Product processing equipment from ferrous metal damage

Material to be processed enters the top of the housing and flows across the surface of the drum. As the drum shell rotates around the stationary magnetic field, all non- ferrous product which is unaffected by the magnet, falls free from the drum into the cleaned material flow. Any ferrous tramp metal is captured by the magnetic field and is held on the drum's surface. As the drum rotates, the metal is carried past the diverter and released outside of the magnetic field.

• Powerful Ceramic or rare Earth Permanent Magnet material
• Over 180º of Magnetic Arc Production
• Manually adjustable Magnetic arc position
• Drum diameters from 12" to 14" available
• Drum widths available from 12" to 60"
• Inlet and Discharge Mounting Flanges
• Inlet transition to direct product flow
• Fixed diverter to separate cleaned product and collected tramp metal.
• Flex seal to Prevent Product from Flowing Around the Backside of the drum
• Access Doors for inspection and drum Removal
• Sealed Bearings for Drum Support and Drive
• Direct Drive Mounting with Worm Speed Gear Reducer

Smooth, uniform and consistent presentation of the product to the drum's surface has a direct effect on the separators ability to efficiently separate tramp metal from the product flow. For the best separation results a vibratory feeder is often recommended.

• Rare Earth= 40 MGOe material, Ceramic= 8 material
• 304 Stainless Steel Drum Shell
• Three (3), ½"Wiper Strips
• Sealed Ball Bearings for Shell Rotation
• Fixed TG & P Mild Steel Shaft
• 240/480V AC Motor
• Direct Drive Worm Gear Speed Reducer

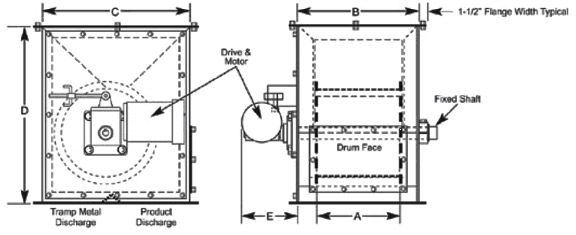

• Industrial Welded Housings:
• Mild Steel for Ceramic Drums
• 304 Stainless Steel for Rare Earth Drums

• Custom Diameters and Widths
• Stainless Steel Drum Shaft
• Adjustable Inlet Opening
• Special magnetic Circuits for Reach Out or Holding
• Stainless Steel Housings for Ceramic Drums
• Special Inlet for Vibratory Feeded Interface
• Multiple Drum Assembles
• Fine Particle Discharge
• Custom Inlet and Discharge Transitions
• Special Voltage Motors and Drive Packages
• Abras on Resisting Fading
• Speed Switch

Technical data specification subject to change.
# Sugar Drum Magnetic Separator can be made on request of customers, they have to just send us their technical data and application, required for our engineers.
